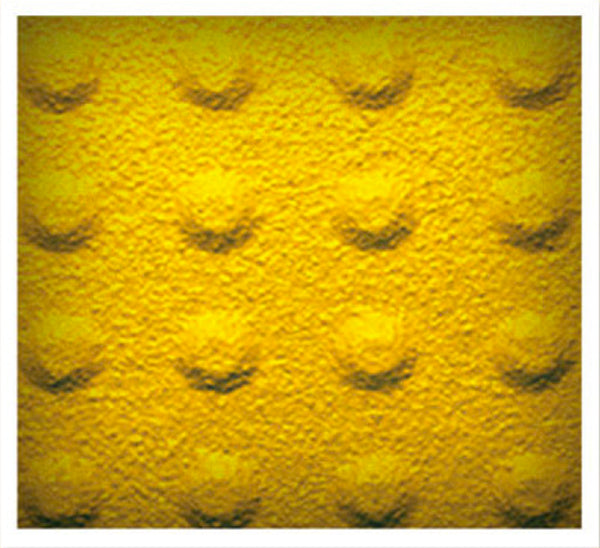

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Yellow

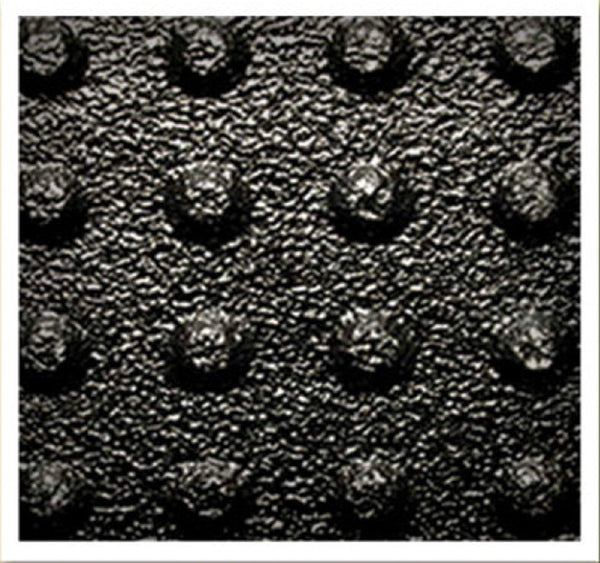

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Black

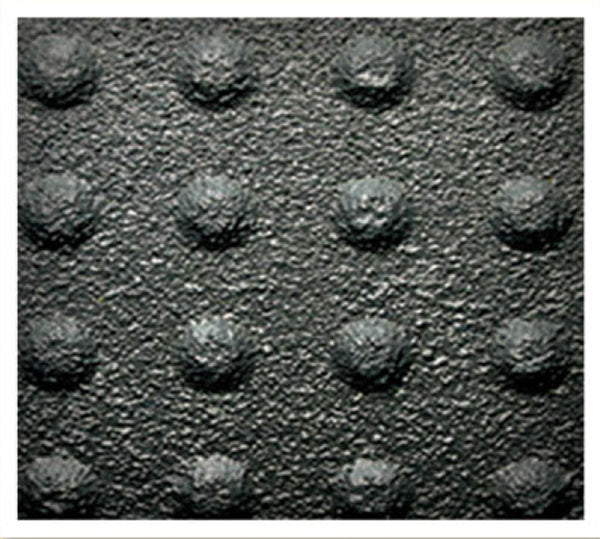

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Dark Gray

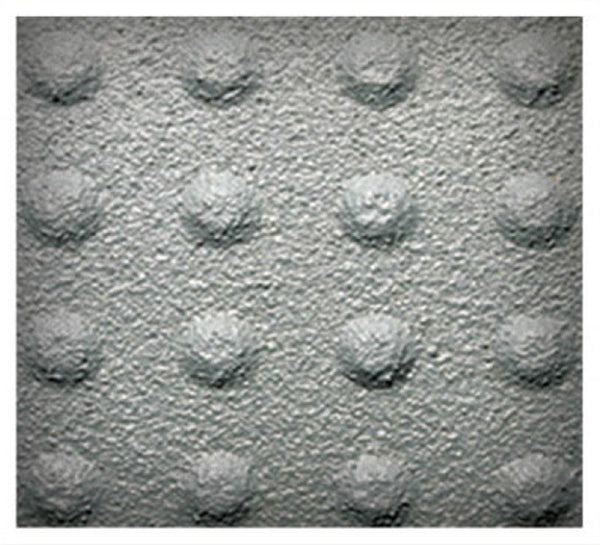

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Light Gray

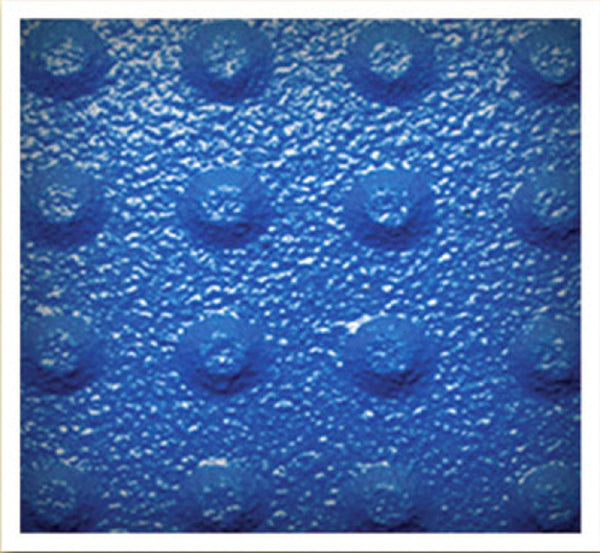

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Blue

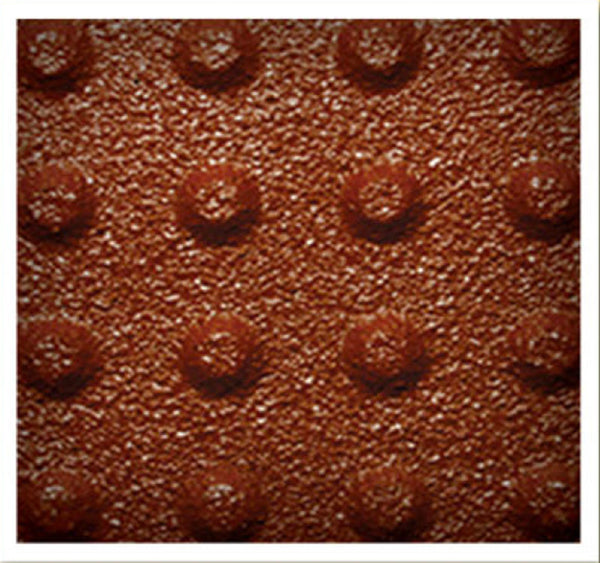

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Red

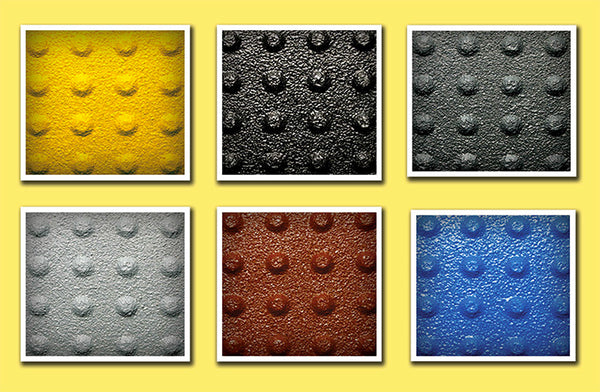

TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Color chart
ADA Self Adhesive Mat for Asphalt or Concrete Surfaces 2x5 Size
TDD-SSP-25 Self-Adhesive ADA Truncated Domes - 2' x 5' - Installation photos
Safety Step TD

Self-Adhesive ADA Truncated Domes - 2' x 5' - for Asphalt or Concrete

TDD-SSP-25
Regular price $259.00 Sale price $269.00    FREE SHIPPING
Choose Color
Yellow
Black
Dark Grey
Light Grey
Blue
Red
Self-adhesive ship in 1-4 business days from CA.
This product ships only by ground services to a Business Address.
Questions? Contact us


ADA Truncated Domes Mats Using Peel and Stick Power Bond Adhesive Technology - ADA Compliant - Surface Mount on Concrete or Asphalt Surfaces

These ADA Truncated Domes Pads Ship Free by Ground Services only. Air shipping is not available. Product ships from Southern California, typically in 1-4 business days.

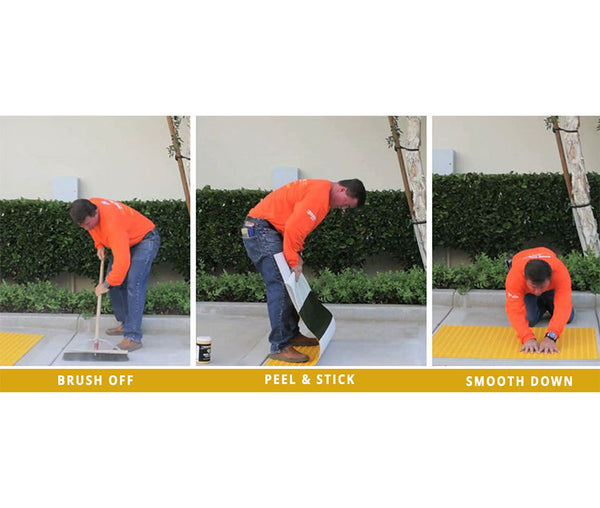

Installing Self-Adhesive Truncated Domes

It's super simple to install our self-adhesive truncated domes. First, thoroughly clean off the surface brushing away any dirt or debris. Next, peel off the back sheeting and place the adhesive side of the ADA mat down, being sure to flatten it smooth to remove any trapped air. Then, using a regular paint brush, apply the provided moisture sealant along the perimeter edge of the mat, using an upward stroke of the brush. That's all there is to It!

Self-Adhesive ADA Truncated Domes Mats for Asphalt or Concrete Surfaces

  • These truncated domes are the only product we recommend for installing on asphalt surfaces. And they work equally well on concrete surfaces.
  • Our mats use a proprietary "Power Bond" adhesion technology for easy installation
  • Base of mats is only 2mm thick presenting a zero trip hazard
  • ADA, California and State compliant truncated domes height of .2" and a .9" diameter.
  • These mats are long lasting, heavy duty, and have an ultra strong adhesive to ensure a lasting bond.
  • This pad install in only minutes: Join the professional crews that are switching from traditional surface mounted and wet concrete cast-in-place ADA tiles to these new ADA compliant surface mound mats.
  • The product is an ADA compliant patterned mat with a high contrast, low profile, slip-resistant surface. The product meets ADA guidelines for ADAAG section 4.29.2 ADA compliant truncated-domes tactile warning system for pavement.
  • Compliance Notes: Consult your local/state regulations and select your sizes accordingly. (For example, in California, a 3' x 5' size mat (not this 2' x 5' size) would be used to meet the state's required minimum 3-foot depth for truncated domes.) There are also contrast regulations to be aware of when selecting colors: Detectable Warning Surfaces shall contrast visually with adjacent walking surfaces either light-on-dark, or dark-on-light.
  • For even easier installation, use this Truncated Domes Roller for efficiently rolling out any air bubbles and ensuring the entire mat is in full contact with the surface it is mounted on, ensuring the perfect installation

A Note on Finished Dimensions Individual mats are cut from continuous material in the factory. ADA and California and other state regulations require each mat to have the same number and position of domes. This can lead to slight variations in the overall width or length of the individual mats, to prevent cutting through any of the domes. E.g., to insure each mat has the required 16 truncated domes per length and 10 truncated domes per width, the finished size of a 2' x 3' mat may measure 23.5" x 35". Floating up 1/4" of the provided edge sealant can also increase final mat dimensions.

truncated domes installation rollerWant to make installation even more effective and efficient? Use this roller tool to expertly and quickly smooth out self-adhesive truncated domes mats, removing all trapped air or air bubbles, and guaranteeing a mat is in complete contact with the surface it's mounted on for maximum product performance and longevity.

Installation temperatures must be above 45 degrees Fahrenheit and surface temperature must be above 20 degrees Fahrenheit Do not install when rain is coming or if it is wet out
