Surface Applied Truncated Domes for Concrete 2x5 Size

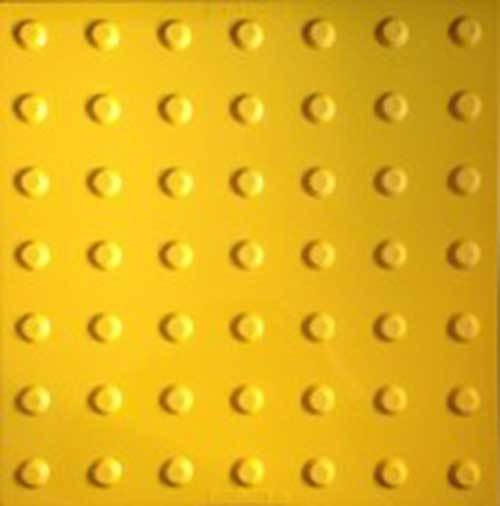

TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - Yellow
TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - Black
TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - Dark Gray
TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - Brick Red
TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - Colonial Red

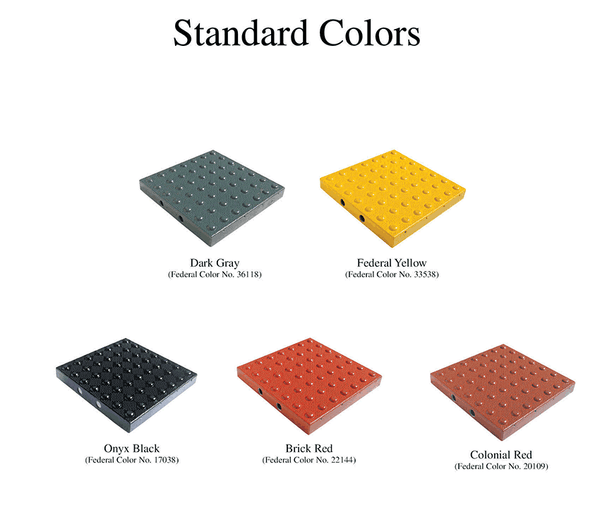

TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - color chart

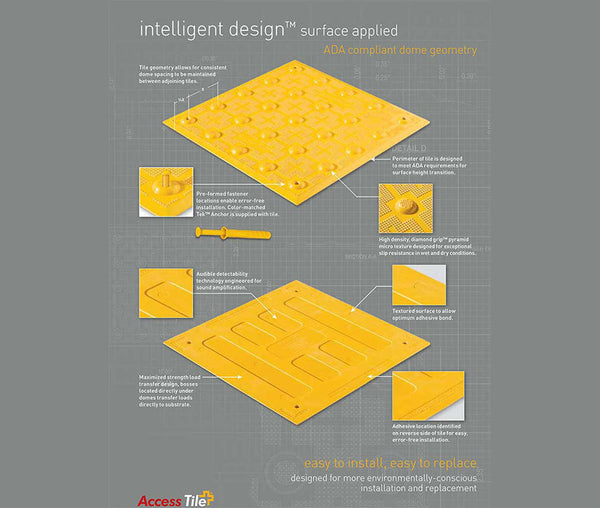

TDD-ATS-25 Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - Features
Access Tiles

Truncated Domes Tiles for Concrete Surfaces - 2' x 5' - ADA Compliant

TDD-ATS-25
Regular price $219.00 Sale price $259.00    FREE SHIPPING
Choose Color
Federal Yellow
Black
Dark Grey
Brick Red
Colonial Red
Surface Mount Tiles ship in 1-4 business days from NY.
This product ships only by ground services to a Business Address.
Questions? Contact us


Truncated Domes Surface Applied Tiles - 2' x 5' Size - Includes Adhesive and Anchoring Hardware

These Truncated Domes Access Tiles are Shipped Free by Ground Services. Expedited air shipping is not available. This product ships from New York, typically in 1-4 business days.

ADA Compliant Truncated Domes Tiles for Surface Mounting on Concrete

  • Fully complies with all ADA and OHSA requirements for surface height transitions to eliminate trip hazards
  • Consistent dome spacing when tiles are adjoined (side-by-side or end-to-end)
  • Wide in-line dome configuration facilitates a smooth rolling transition for strollers, wheelchairs and walkers
  • Trademarked diamond grip high density pyramid micro texture designed for exceptional slip resistance in wet and dry conditions
  • Textured surface on bottom to allow optimum adhesive bond
  • Adhesive location identified on underside of tile for easy, error-free installation
  • 2.35" center-to-center, in-line dome spacing meets ADA Federal and State requirements
  • Truncated dome size and spacing compliant with ADA Federal and State requirements, 0.9" base and 0.45" top diameter
  • Perimeter of tile is designed to meet ADA requirements for surface height transition.
  • Pre-formed fastener locations enable error-free installation. Color-matched anchoring hardware is supplied with tile.
  • NOTE: California requires a minimum 3-foot depth for truncated domes. For California compliance, use a 3' x 5' size tile, rather than this 2' x 5' size. Please consult your local/state regulations and select your sizes accordingly. When selecting colors of truncated domes be aware of the contrast regulation: Detectable Warning Surfaces shall contrast visually with adjacent walking surfaces either light-on-dark, or dark-on-light.

As curb ramps have become common in response to the requirements of the Rehabilitation Act (1973) and the Americans with Disabilities Act (1990), an unintended consequence has been that blind pedestrians have found it more difficult to locate the boundary between the street and sidewalk. The only surface which has repeatedly been demonstrated to be detectable to most blind pedestrians, either under foot or by the use of a long cane, is the truncated dome detectable warning surface, which has been required on transit platform edges since 1991 and at curb ramps since July 2001. Detectable Warnings incorporating truncated domes are the only option to make hazardous vehicular ways, curb ramps and transit platform edges ADA compliant.


Surface Applied Paving Tile Resources:

Every Order from Truncated Domes Depot Gets Free Shipping

High Quality | American Made | ADA/California Compliant

Our American Designed and Manufactured Truncated Domes and ADA Pads typically ship in 1-4 business days from warehouses in California, New York, or Florida, depending on the product(s) ordered. Each product page shows the location of the shipping warehouse.

NOTE: Due to their size, weight, and UPS/FedEx considering certain industrial adhesives as hazardous materials, truncated domes can only be shipped by Ground Services to a Business Address. Expedited air shipping is not available. Larger orders are shipped free by LTL freight truck services.

  • Self-Adhesive Truncated Domes ship from CA in 1-4 business days.
  • Surface Mount Truncated Domes Tiles and Cast-in-Place Tiles ship from NY in 1-4 business days
  • Flexible Urethane ADA Pads ship from FL in 1-4 business days
  • You can view/download installation instructions on our site. We also include relevant product instructions with every shipment.
  • As soon as your order is received, we will advise you by email within 24 hours on the scheduled shipping date for your order. Tracking numbers/shipping carrier information is emailed to you within 24 hours of shipment.
  • All orders ship by ground/surface transport. Smaller orders may ship by UPS Ground or FedEx Ground. Larger orders will ship by LTL freight truck. Due to the large size and heavy weight of truncated domes products, expedited shipping by air is not available.
  • When you place an order, we will estimate shipping dates for you based on the availability of your items, and updated you by email.
  • Depending on inventory levels of selected styles, colors, and sizes, larger orders may take longer to ship. We will always advise you of the target ship date.
  • Will-call Pickups are Not Available. All orders are shipped, often from multiple locations, depending on the products ordered. Each product page shows the typical time to ship that product. We email tracking information when we schedule shipment and each time we make a shipment, so you will know the item is on the way, and when to expect delivery.
  • Have questions? Need a Quote or Free Consultation? Please contact us
