Truncated Domes Tiles for Concrete Surfaces - 3' x 4' - ADA Compliant

TDD-ATS-34
Regular price $335.00 $0.00    FREE SHIPPING

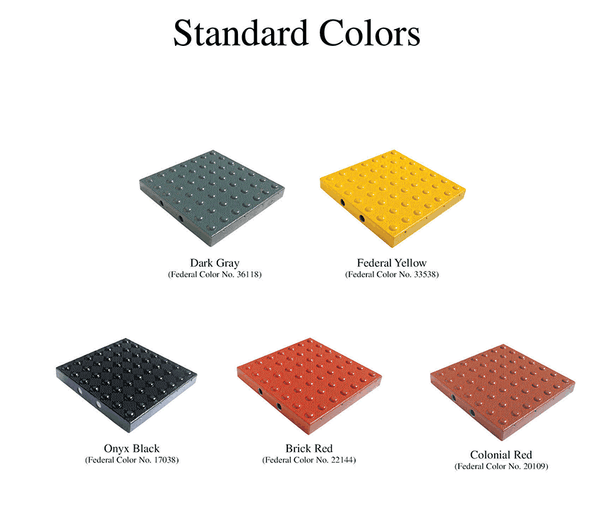

Choose Color
Federal Yellow
Black
Dark Grey
Brick Red
Colonial Red
Surface Mount Tiles ship in 1-4 business days from NY.
This product ships only by ground services to a Business Address.
Questions? Contact us

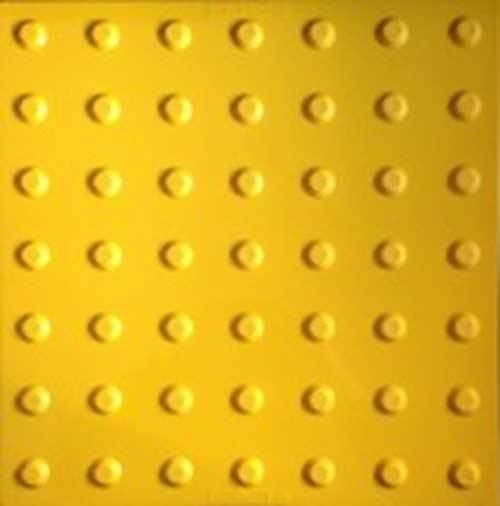

Truncated Domes - Rigid Durable ADA Tiles - 3' x 4' Size - Installed on Concrete Surfaces

Truncated Domes Ship Free by Ground Services. Expedited air shipping is not available. This product ships from New York, typically in 1-4 business days.

Note: This 3' x 4' size is compliant with California regulations calling for a minimum 3-foot depth for truncated domes installations.

ADA Compliant and California Compliant 3' x4' Truncated Domes Tiles for Installation on Concrete Surfaces

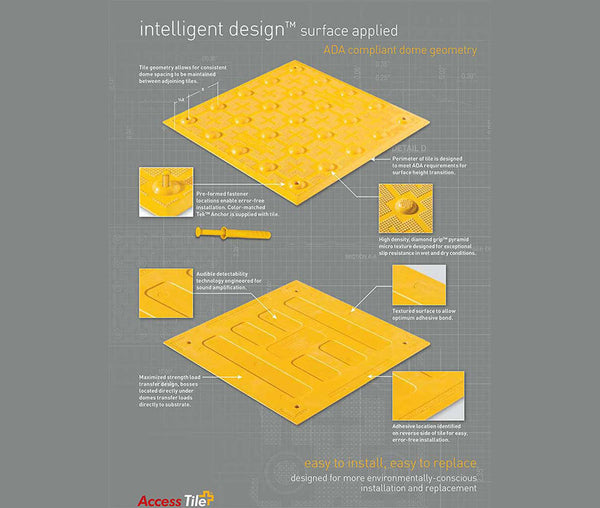

  • 2.35" center-to-center, in-line dome spacing meets ADA Federal and State requirements
  • Truncated dome size and spacing compliant with ADA Federal and State requirements, 0.9" base and 0.45" top diameter
  • Perimeter of tile is designed to meet ADA requirements for surface height transition.
  • Fully complies with all ADA and OHSA requirements for surface height transitions to eliminate trip hazards
  • Consistent dome spacing when tiles are adjoined (side-by-side or end-to-end)
  • Wide in-line dome configuration facilitates a smooth rolling transition for strollers, wheelchairs and walkers
  • High density, diamond grip™ pyramid micro texture designed for exceptional slip resistance in wet and dry conditions.
  • Textured surface on bottom to allow optimum adhesive bond.
  • Adhesive location identified on underside of tile for easy, error-free installation.
  • Pre-formed fastener locations enable error-free installation. Color-matched anchoring hardware is supplied with tile.
  • NOTE: California requires a minimum 3-foot depth for truncated domes. This 3' x 4' size truncated dome tile meets the California regulations. Please consult your local/state regulations and select your sizes accordingly. When selecting colors of truncated domes, please also be aware of the contrast regulation: Detectable Warning Surfaces shall contrast visually with adjacent walking surfaces either light-on-dark, or dark-on-light.
  • Looking for truncated domes that can be installed on asphalt surfaces? Check out our Self-Adhesive Style Truncated Domes Mats
California Title 24 requires that “If a walk crosses or adjoins a vehicular way, and the walking surfaces are not separated by curbs, railings or other elements between the pedestrian areas and vehicular areas, the boundary between the areas shall be defined by a continuous detectable warning which is 36 inches (914 mm) wide….” It must be safety yellow.


Tactile paving (also called truncated domes, detectable warnings, Tactile Ground Surface Indicators, detectable warning surfaces) are textured ground surface indicators used on ramps or stairs, beside train station platforms, and at sidewalk curb cutouts and along pedestrian paths of travel. These surface applied truncated domes assist pedestrians who are blind or have visual impairments, being detectible by cane and under foot. But these colorful ADA pads also warn the sighted, making them pay attention to changes in the surface or inherently dangerous areas, such as train platforms or sidewalks that are on a level with the street or vehicle driveways. Truncated domes are "an Americans with Disabilities Act (ADA) requirement in the current Americans with Disabilities Act Accessibility Guidelines (ADAAG) for the use of detecting the boundary between the sidewalk and the street." The surface applied dome pads, also called retrofit or dry set pads, allow you to bring your property into ADA compliance without the expense and hassle of removing dry concrete to pour fresh concrete and then install cast-in-place or wet-set tiles. In order to compliant with ADA laws the manufacturer’s of truncated domes must file a certificate with the ADA warranting their products will have a service life of a minimum of five years. All the paving tile products sold by ADA Sign Depot are manufactured by companies that have filed with the ADA warranty of meeting the minimum five-year service life.
